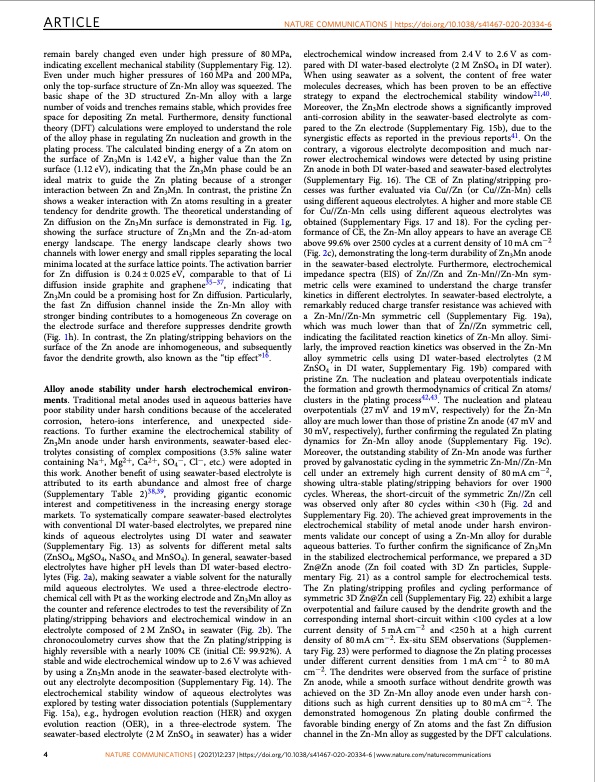

ARTICLE NATURE COMMUNICATIONS | https://doi.org/10.1038/s41467-020-20334-6 remain barely changed even under high pressure of 80MPa, indicating excellent mechanical stability (Supplementary Fig. 12). Even under much higher pressures of 160 MPa and 200 MPa, only the top-surface structure of Zn-Mn alloy was squeezed. The basic shape of the 3D structured Zn-Mn alloy with a large number of voids and trenches remains stable, which provides free space for depositing Zn metal. Furthermore, density functional theory (DFT) calculations were employed to understand the role of the alloy phase in regulating Zn nucleation and growth in the plating process. The calculated binding energy of a Zn atom on the surface of Zn3Mn is 1.42eV, a higher value than the Zn surface (1.12 eV), indicating that the Zn3Mn phase could be an ideal matrix to guide the Zn plating because of a stronger interaction between Zn and Zn3Mn. In contrast, the pristine Zn shows a weaker interaction with Zn atoms resulting in a greater tendency for dendrite growth. The theoretical understanding of Zn diffusion on the Zn3Mn surface is demonstrated in Fig. 1g, showing the surface structure of Zn3Mn and the Zn-ad-atom energy landscape. The energy landscape clearly shows two channels with lower energy and small ripples separating the local minima located at the surface lattice points. The activation barrier for Zn diffusion is 0.24 ± 0.025 eV, comparable to that of Li diffusion inside graphite and graphene35–37, indicating that Zn3Mn could be a promising host for Zn diffusion. Particularly, the fast Zn diffusion channel inside the Zn-Mn alloy with stronger binding contributes to a homogeneous Zn coverage on the electrode surface and therefore suppresses dendrite growth (Fig. 1h). In contrast, the Zn plating/stripping behaviors on the surface of the Zn anode are inhomogeneous, and subsequently favor the dendrite growth, also known as the “tip effect”16. Alloy anode stability under harsh electrochemical environ- ments. Traditional metal anodes used in aqueous batteries have poor stability under harsh conditions because of the accelerated corrosion, hetero-ions interference, and unexpected side- reactions. To further examine the electrochemical stability of Zn3Mn anode under harsh environments, seawater-based elec- trolytes consisting of complex compositions (3.5% saline water containing Na+, Mg2+, Ca2+, SO4−, Cl−, etc.) were adopted in this work. Another benefit of using seawater-based electrolyte is attributed to its earth abundance and almost free of charge (Supplementary Table 2)38,39, providing gigantic economic interest and competitiveness in the increasing energy storage markets. To systematically compare seawater-based electrolytes with conventional DI water-based electrolytes, we prepared nine kinds of aqueous electrolytes using DI water and seawater (Supplementary Fig. 13) as solvents for different metal salts (ZnSO4, MgSO4, NaSO4, and MnSO4). In general, seawater-based electrolytes have higher pH levels than DI water-based electro- lytes (Fig. 2a), making seawater a viable solvent for the naturally mild aqueous electrolytes. We used a three-electrode electro- chemical cell with Pt as the working electrode and Zn3Mn alloy as the counter and reference electrodes to test the reversibility of Zn plating/stripping behaviors and electrochemical window in an electrolyte composed of 2 M ZnSO4 in seawater (Fig. 2b). The chronocoulometry curves show that the Zn plating/stripping is highly reversible with a nearly 100% CE (initial CE: 99.92%). A stable and wide electrochemical window up to 2.6 V was achieved by using a Zn3Mn anode in the seawater-based electrolyte with- out any electrolyte decomposition (Supplementary Fig. 14). The electrochemical stability window of aqueous electrolytes was explored by testing water dissociation potentials (Supplementary Fig. 15a), e.g., hydrogen evolution reaction (HER) and oxygen evolution reaction (OER), in a three-electrode system. The seawater-based electrolyte (2 M ZnSO4 in seawater) has a wider electrochemical window increased from 2.4 V to 2.6 V as com- pared with DI water-based electrolyte (2 M ZnSO4 in DI water). When using seawater as a solvent, the content of free water molecules decreases, which has been proven to be an effective strategy to expand the electrochemical stability window21,40. Moreover, the Zn3Mn electrode shows a significantly improved anti-corrosion ability in the seawater-based electrolyte as com- pared to the Zn electrode (Supplementary Fig. 15b), due to the synergistic effects as reported in the previous reports41. On the contrary, a vigorous electrolyte decomposition and much nar- rower electrochemical windows were detected by using pristine Zn anode in both DI water-based and seawater-based electrolytes (Supplementary Fig. 16). The CE of Zn plating/stripping pro- cesses was further evaluated via Cu//Zn (or Cu//Zn-Mn) cells using different aqueous electrolytes. A higher and more stable CE for Cu//Zn-Mn cells using different aqueous electrolytes was obtained (Supplementary Figs. 17 and 18). For the cycling per- formance of CE, the Zn-Mn alloy appears to have an average CE above 99.6% over 2500 cycles at a current density of 10 mA cm−2 (Fig. 2c), demonstrating the long-term durability of Zn3Mn anode in the seawater-based electrolyte. Furthermore, electrochemical impedance spectra (EIS) of Zn//Zn and Zn-Mn//Zn-Mn sym- metric cells were examined to understand the charge transfer kinetics in different electrolytes. In seawater-based electrolyte, a remarkably reduced charge transfer resistance was achieved with a Zn-Mn//Zn-Mn symmetric cell (Supplementary Fig. 19a), which was much lower than that of Zn//Zn symmetric cell, indicating the facilitated reaction kinetics of Zn-Mn alloy. Simi- larly, the improved reaction kinetics was observed in the Zn-Mn alloy symmetric cells using DI water-based electrolytes (2M ZnSO4 in DI water, Supplementary Fig. 19b) compared with pristine Zn. The nucleation and plateau overpotentials indicate the formation and growth thermodynamics of critical Zn atoms/ clusters in the plating process42,43. The nucleation and plateau overpotentials (27 mV and 19 mV, respectively) for the Zn-Mn alloy are much lower than those of pristine Zn anode (47 mV and 30 mV, respectively), further confirming the regulated Zn plating dynamics for Zn-Mn alloy anode (Supplementary Fig. 19c). Moreover, the outstanding stability of Zn-Mn anode was further proved by galvanostatic cycling in the symmetric Zn-Mn//Zn-Mn cell under an extremely high current density of 80 mA cm−2, showing ultra-stable plating/stripping behaviors for over 1900 cycles. Whereas, the short-circuit of the symmetric Zn//Zn cell was observed only after 80 cycles within <30h (Fig. 2d and Supplementary Fig. 20). The achieved great improvements in the electrochemical stability of metal anode under harsh environ- ments validate our concept of using a Zn-Mn alloy for durable aqueous batteries. To further confirm the significance of Zn3Mn in the stabilized electrochemical performance, we prepared a 3D Zn@Zn anode (Zn foil coated with 3D Zn particles, Supple- mentary Fig. 21) as a control sample for electrochemical tests. The Zn plating/stripping profiles and cycling performance of symmetric 3D Zn@Zn cell (Supplementary Fig. 22) exhibit a large overpotential and failure caused by the dendrite growth and the corresponding internal short-circuit within <100 cycles at a low current density of 5 mA cm−2 and <250 h at a high current density of 80 mA cm−2. Ex-situ SEM observations (Supplemen- tary Fig. 23) were performed to diagnose the Zn plating processes under different current densities from 1 mA cm−2 to 80 mA cm−2. The dendrites were observed from the surface of pristine Zn anode, while a smooth surface without dendrite growth was achieved on the 3D Zn-Mn alloy anode even under harsh con- ditions such as high current densities up to 80 mA cm−2. The demonstrated homogenous Zn plating double confirmed the favorable binding energy of Zn atoms and the fast Zn diffusion channel in the Zn-Mn alloy as suggested by the DFT calculations. 4 NATURE COMMUNICATIONS | (2021)12:237 | https://doi.org/10.1038/s41467-020-20334-6 | www.nature.com/naturecommunicationsPDF Image | high-performance dendrite-free seawater-based batteries
