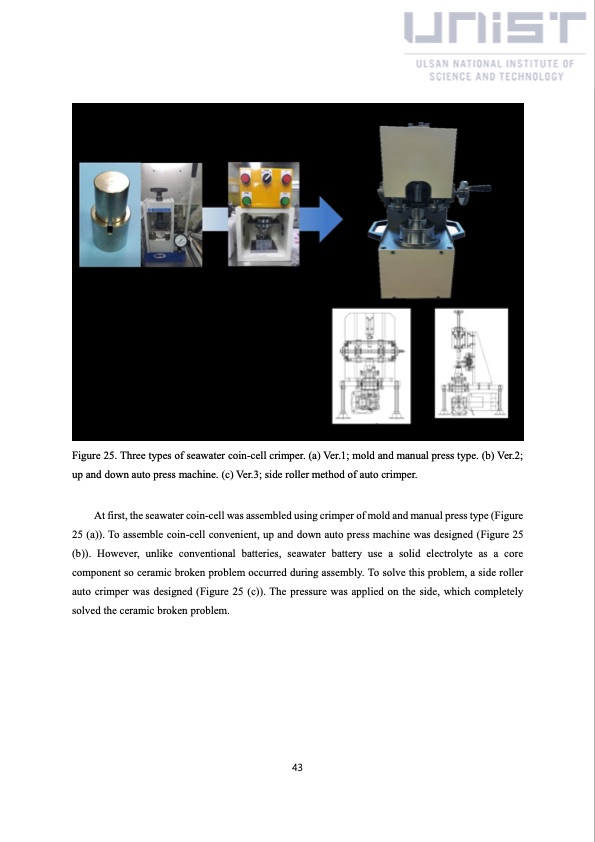

Figure 25. Three types of seawater coin-cell crimper. (a) Ver.1; mold and manual press type. (b) Ver.2; up and down auto press machine. (c) Ver.3; side roller method of auto crimper. At first, the seawater coin-cell was assembled using crimper of mold and manual press type (Figure 25 (a)). To assemble coin-cell convenient, up and down auto press machine was designed (Figure 25 (b)). However, unlike conventional batteries, seawater battery use a solid electrolyte as a core component so ceramic broken problem occurred during assembly. To solve this problem, a side roller auto crimper was designed (Figure 25 (c)). The pressure was applied on the side, which completely solved the ceramic broken problem. 43PDF Image | China solar seawater battery
