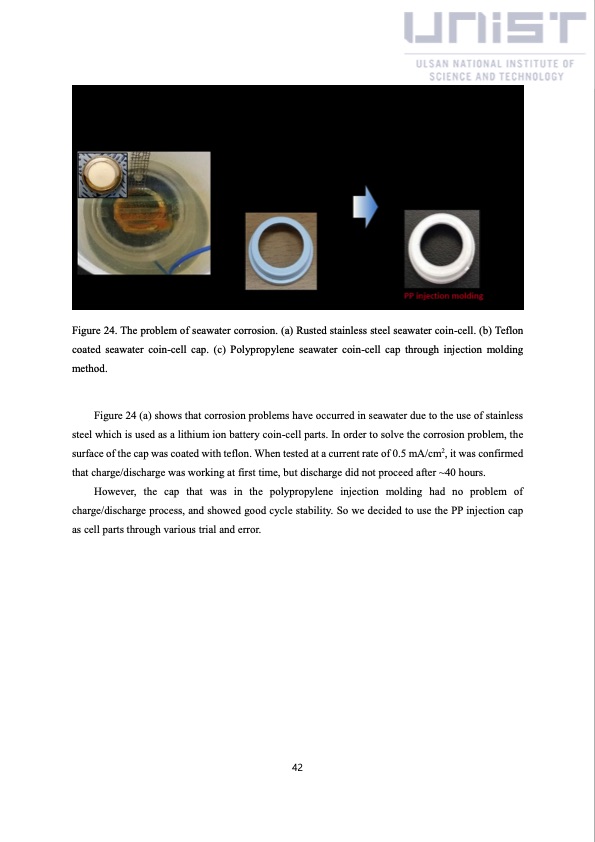

Figure 24. The problem of seawater corrosion. (a) Rusted stainless steel seawater coin-cell. (b) Teflon coated seawater coin-cell cap. (c) Polypropylene seawater coin-cell cap through injection molding method. Figure 24 (a) shows that corrosion problems have occurred in seawater due to the use of stainless steel which is used as a lithium ion battery coin-cell parts. In order to solve the corrosion problem, the surface of the cap was coated with teflon. When tested at a current rate of 0.5 mA/cm2, it was confirmed that charge/discharge was working at first time, but discharge did not proceed after ~40 hours. However, the cap that was in the polypropylene injection molding had no problem of charge/discharge process, and showed good cycle stability. So we decided to use the PP injection cap as cell parts through various trial and error. 42PDF Image | China solar seawater battery
