TESLA BATTERY ENERGY STORAGE SYSTEM NYSEG

Page | 005

FIRE CONTROL
PANEL TO BE POWERED IN MAIN ELECTRICAL ROOM AS OPPOSED TO (N) BESS PANEL. IN THE EVENT OF A POWER OUTAGE THE PROPOSED GENERATOR SYSTEM WILL SUPPLY POWER TO THE MAIN ELECTRICAL ROOM WHILE THE BATTERY SYSTEM DISCONNECTS.
(E) TIE BREAKER
TO UTILITY
# EQUIPMENT NOTES
(E)
BUSS SECTION TO BE REMOVED UNDER FUTURE CONTRACT
(N) ROGOWSKI COIL
BY TESLA
BREAKER CONNECTION COMPARTMENT 10B 1600A BREAKER TO BE DIALED DOWN TO 0.5 BY TESLA
CONTROL AT AUXILIARY CONTACT VERIFY WITH MATCO OR PROJECT ENGINEER.
TO EXISTING LOADS
19.1
(E) MAIN SWITCH GEAR
������� �� �� 4000A
4000A
1200A 1200A
4000A
1
7
(E) UTILITY TRANSFORMER
2500 KVA ���������������
(E) UTILITY
METER
M "RTU-RS485" 0001-004
1600A
200AT 2000AF
1600A
4000A
4000A
"MTR-1-RC" 0001-004
PAD MOUNTED DISCONNECTS
AUTOMATIC TRANSFER SWITCH ������� �� ��
G
GENERATOR
1600A
IN UNIT SUBSTATION WALK IN ENCLOSURE
LOCATED OUTSIDE
2
AC-01
3
(N) FUSIBLE
DISCONNECT
"SW-1"
600A, 450A FUSES
BY TESLA
(N) MOLDED CASE GENERAC SWITCH
(E) PANEL "MCC 2A"
1200A
K
(E) KIRK KEY
1200A
200A 125A
(E) PANEL "MCC 2B"
200A 125A
200A
1600A
450A
200A 200A 800A 125A 125A
200A (E) 200A CHP UTILITY
DISCONNECTS (TYP.)
PV
PV
A
G
(E) GENERATOR TO BE REMOVED BY OTHERS.
AC-02
GENERATOR
TO ISOLATE PP-1 FROM MAIN SWITCH GEAR
BY TESLA
(SAFE OPEN)
10
9
200A
200A
(E) PV UTILITY DISCONNECT
A
TSC-PWR
TO (2) (E) COMBINED HEAT & POWER UNITS REFERENCE EXISTING DRAWINGS "IAWWTF_E2" FOR ADDITIONAL DETAILS
TO (2) (E) COMBINED HEAT & POWER UNITS AND 5KV PV ARRAY REFERENCE EXISTING DRAWINGS "IAWWTF_E2" FOR ADDITIONAL DETAILS
A
4
M
(N) SITE METER "MTR-1"
BY TESLA
MTR-1-PWR
MTR-2-PWR
(N) BESS-PNL
������� �� �� 450A 20A 600A
BY TESLA
SPARE
PROPOSED (N) GENERATOR BACK UP
BY OTHERS
UNDER FUTURE CONTRACT FINAL SITE LOCATION TBD
19.2
"MTR-2-RC" 0001-004
BY TESLA
(N) ROGOWSKI COIL
"TSC-CAT5" 0001-004
(N) POWERPACK INVERTER, PP-1 BY TESLA 280kVA
20
(N) POWERPACK HVDC CABLE
BY TESLA
17
(N) POWERPACK
BY TESLA 1140kWh
(N) TESLA SITE CONTROLLER "TSC" BY TESLA
RTU-PWR
(N) RTU
BY TESLA
(N) BATTERY METER M "MTR-2"
BY TESLA
PP-1
15
TO CHP UTILITY DISCONENCT REFERENCE EXISTING DRAWINGS "IAWWTF_E2" FOR ADDITIONAL DETAILS
(E) 65KW CHP UNIT (TYP).
65
(N) POINT OF INTERCONNECTION
UL741 PROTECTIVE RELAY
SEMIKRON SKIIP IGBT INVERTER
CHP
NOTE: SEE E-011 AND E-021 FOR CIRCUIT AND EQUIPMENT SCHEDULES
.. ....
REV DESCRIPTION DATE BY CK APP
NYSEG- WASTE WATER TREATMENT PLAN 525 THIRD ST. ITHACA, NY 14853, US
AVANGRID ENGINEERING
CONFIDENTIAL, PROPRIETARY and TRADE SECRET INFORMATION Property of AVANGRID, Inc.
NYSEG
AVANGRID
-
-
-
-
-
-
-
-
-
REV
DESCRIPTION
DATE
BY
CK
APP
.
.
.
.
3500 DEER CREEK RD. PALO ALTO, CA 94304 (650) 681-5000
BY - SCALE: N/A CK - NO.
APP -
DATE 07/XX/2019
REV
4367-0001-001 0
PE Stamp

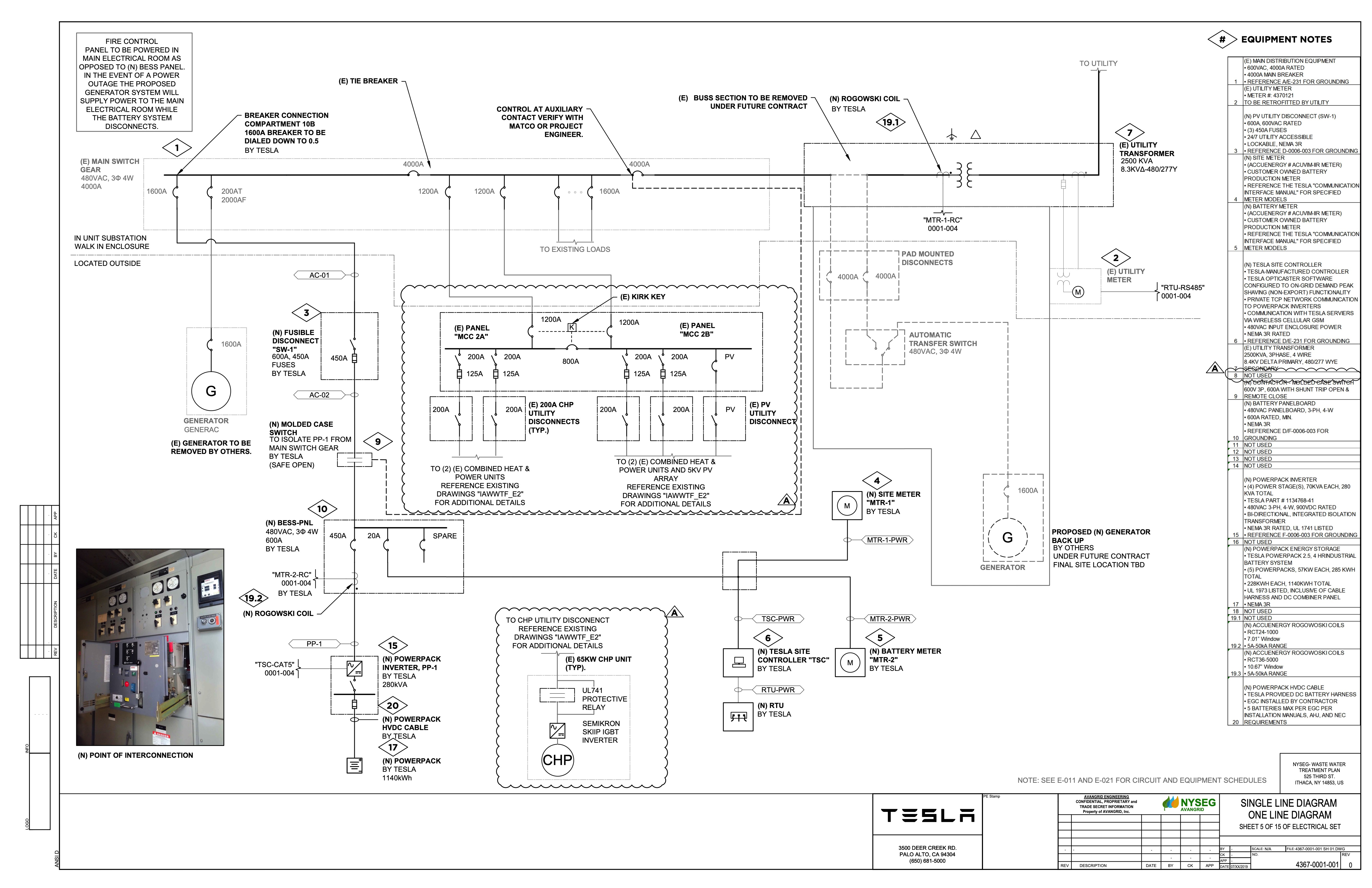

SINGLE LINE DIAGRAM
ONE LINE DIAGRAM SHEET 5 OF 15 OF ELECTRICAL SET
FILE: 4367-0001-001 SH 01.DWG
ANSI D
LOGO INFO
