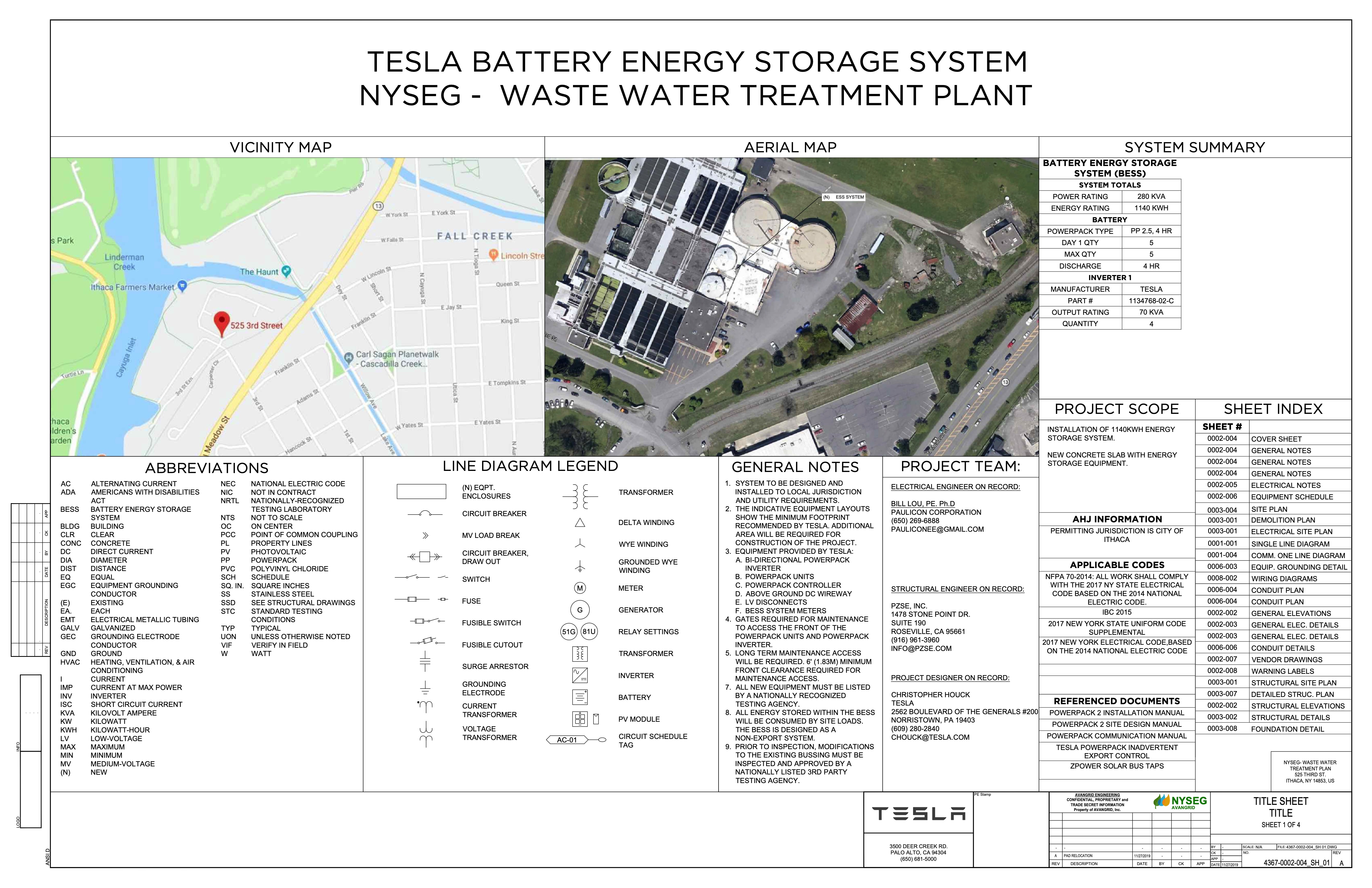

TESLA BATTERY ENERGY STORAGE SYSTEM NYSEG

Page | 001

TESLA BATTERY ENERGY STORAGE SYSTEM NYSEG - WASTE WATER TREATMENT PLANT
3500 DEER CREEK RD. PALO ALTO, CA 94304 (650) 681-5000
BY - SCALE: N/A CK - NO.
APP -
DATE 11/27/2019
REV
4367-0002-004_SH_01 A
PE Stamp
BATTERY ENERGY STORAGE
SYSTEM (BESS)
0003-008
COVER SHEET GENERAL NOTES GENERAL NOTES GENERAL NOTES ELECTRICAL NOTES EQUIPMENT SCHEDULE SITE PLAN
DEMOLITION PLAN
ELECTRICAL SITE PLAN SINGLE LINE DIAGRAM
COMM. ONE LINE DIAGRAM
EQUIP. GROUNDING DETAIL
WIRING DIAGRAMS
CONDUIT PLAN
CONDUIT PLAN
GENERAL ELEVATIONS GENERAL ELEC. DETAILS GENERAL ELEC. DETAILS CONDUIT DETAILS VENDOR DRAWINGS WARNING LABELS STRUCTURAL SITE PLAN DETAILED STRUC. PLAN STRUCTURAL ELEVATIONS STRUCTURAL DETAILS FOUNDATION DETAIL
NYSEG- WASTE WATER TREATMENT PLAN 525 THIRD ST. ITHACA, NY 14853, US
SHEET INDEX
TITLE SHEET
TITLE SHEET 1 OF 4
SYSTEM TOTALS
POWER RATING 280 KVA
ENERGY RATING 1140 KWH
BATTERY
POWERPACK TYPE
PP 2.5, 4 HR
DAY 1 QTY
5
MAX QTY
5
DISCHARGE
4 HR
INVERTER 1
MANUFACTURER
TESLA
PART #
1134768-02-C
OUTPUT RATING
70 KVA
QUANTITY
4
VICINITY MAP
AERIAL MAP
SYSTEM SUMMARY
(N) ESS SYSTEM
PROJECT SCOPE
INSTALLATION OF 1140KWH ENERGY STORAGE SYSTEM.
NEW CONCRETE SLAB WITH ENERGY STORAGE EQUIPMENT.
SHEET #
0002-004
0002-004
AC ALTERNATING CURRENT
ADA AMERICANS WITH DISABILITIES
ACT
BESS BATTERY ENERGY STORAGE
SYSTEM BLDG BUILDING
CLR CLEAR
CONC CONCRETE
DC DIRECT CURRENT
DIA DIAMETER
DIST DISTANCE
EQ EQUAL
EGC EQUIPMENT GROUNDING
CONDUCTOR (E) EXISTING
EA. EACH
EMT ELECTRICAL METALLIC TUBING GALV GALVANIZED
GEC GROUNDING ELECTRODE
CONDUCTOR GND GROUND
HVAC HEATING, VENTILATION, & AIR CONDITIONING
I CURRENT
IMP CURRENT AT MAX POWER INV INVERTER
ISC SHORT CIRCUIT CURRENT KVA KILOVOLT AMPERE
KW KILOWATT
KWH KILOWATT-HOUR
LV LOW-VOLTAGE
MAX MAXIMUM
MIN MINIMUM
MV MEDIUM-VOLTAGE
(N) NEW
NEC NIC NRTL
NTS OC PCC PL
PV
PP PVC SCH SQ. IN. SS SSD STC
NATIONAL ELECTRIC CODE NOT IN CONTRACT NATIONALLY-RECOGNIZED TESTING LABORATORY NOT TO SCALE
ON CENTER
POINT OF COMMON COUPLING PROPERTY LINES PHOTOVOLTAIC
POWERPACK
POLYVINYL CHLORIDE SCHEDULE
SQUARE INCHES
STAINLESS STEEL
SEE STRUCTURAL DRAWINGS STANDARD TESTING CONDITIONS
TYPICAL
UNLESS OTHERWISE NOTED VERIFY IN FIELD
ABBREVIATIONS
TYP
UON
VIF
W WATT
LINE DIAGRAM LEGEND
(N) EQPT. ENCLOSURES
CIRCUIT BREAKER
MV LOAD BREAK
CIRCUIT BREAKER, DRAW OUT
SWITCH
FUSE
FUSIBLE SWITCH
FUSIBLE CUTOUT
SURGE ARRESTOR
GROUNDING ELECTRODE
CURRENT TRANSFORMER
VOLTAGE TRANSFORMER
51G
AC-01
TRANSFORMER
DELTA WINDING
WYE WINDING
GROUNDED WYE WINDING
M METER
G
GENERATOR
81U RELAY SETTINGS
TRANSFORMER
INVERTER
BATTERY
PV MODULE
CIRCUIT SCHEDULE TAG
1. 2.
3.
4.
5.
7. 8.
9.
GENERAL NOTES
SYSTEM TO BE DESIGNED AND INSTALLED TO LOCAL JURISDICTION
AND UTILITY REQUIREMENTS.
THE INDICATIVE EQUIPMENT LAYOUTS SHOW THE MINIMUM FOOTPRINT RECOMMENDED BY TESLA. ADDITIONAL AREA WILL BE REQUIRED FOR CONSTRUCTION OF THE PROJECT. EQUIPMENT PROVIDED BY TESLA:
A. BI-DIRECTIONAL POWERPACK
INVERTER
B. POWERPACK UNITS
C. POWERPACK CONTROLLER
D. ABOVE GROUND DC WIREWAY
E. LV DISCONNECTS
F. BESS SYSTEM METERS
GATES REQUIRED FOR MAINTENANCE TO ACCESS THE FRONT OF THE POWERPACK UNITS AND POWERPACK INVERTER.
LONG TERM MAINTENANCE ACCESS WILL BE REQUIRED. 6' (1.83M) MINIMUM FRONT CLEARANCE REQUIRED FOR MAINTENANCE ACCESS.
ALL NEW EQUIPMENT MUST BE LISTED BY A NATIONALLY RECOGNIZED TESTING AGENCY.
ALL ENERGY STORED WITHIN THE BESS WILL BE CONSUMED BY SITE LOADS. THE BESS IS DESIGNED AS A NON-EXPORT SYSTEM.
PRIOR TO INSPECTION, MODIFICATIONS TO THE EXISTING BUSSING MUST BE INSPECTED AND APPROVED BY A NATIONALLY LISTED 3RD PARTY TESTING AGENCY.
PROJECT TEAM:
0002-004
0002-004
ELECTRICAL ENGINEER ON RECORD:
BILL LOU, PE. Ph.D PAULICON CORPORATION (650) 269-6888 PAULICONEE@GMAIL.COM
STRUCTURAL ENGINEER ON RECORD:
PZSE, INC.
1478 STONE POINT DR. SUITE 190
ROSEVILLE, CA 95661 (916) 961-3960 INFO@PZSE.COM
PROJECT DESIGNER ON RECORD:
CHRISTOPHER HOUCK
TESLA
2562 BOULEVARD OF THE GENERALS #200 NORRISTOWN, PA 19403
(609) 280-2840
CHOUCK@TESLA.COM
0002-005
0002-006
0003-004
.. ....
REV DESCRIPTION DATE BY CK APP
AHJ INFORMATION
0003-001
PERMITTING JURISDICTION IS CITY OF ITHACA
0003-001
0001-001
0001-004
APPLICABLE CODES
0006-003
NFPA 70-2014: ALL WORK SHALL COMPLY WITH THE 2017 NY STATE ELECTRICAL CODE BASED ON THE 2014 NATIONAL ELECTRIC CODE.
0008-002
0006-004
0006-004
IBC 2015
0002-002
2017 NEW YORK STATE UNIFORM CODE SUPPLEMENTAL
0002-003
0002-003
2017 NEW YORK ELECTRICAL CODE,BASED ON THE 2014 NATIONAL ELECTRIC CODE
0006-006
0002-007
0002-008
0003-001
0003-007
REFERENCED DOCUMENTS
0002-002
POWERPACK 2 INSTALLATION MANUAL
0003-002
POWERPACK 2 SITE DESIGN MANUAL
POWERPACK COMMUNICATION MANUAL
TESLA POWERPACK INADVERTENT EXPORT CONTROL
ZPOWER SOLAR BUS TAPS
AVANGRID ENGINEERING
CONFIDENTIAL, PROPRIETARY and TRADE SECRET INFORMATION Property of AVANGRID, Inc.
NYSEG
AVANGRID
-
-
-
-
-
-
A
PAD RELOCATION
11/27/2019
-
-
-
REV
DESCRIPTION
DATE
BY
CK
APP
.
.
.
.
FILE: 4367-0002-004_SH 01.DWG
ANSI D
LOGO INFO
