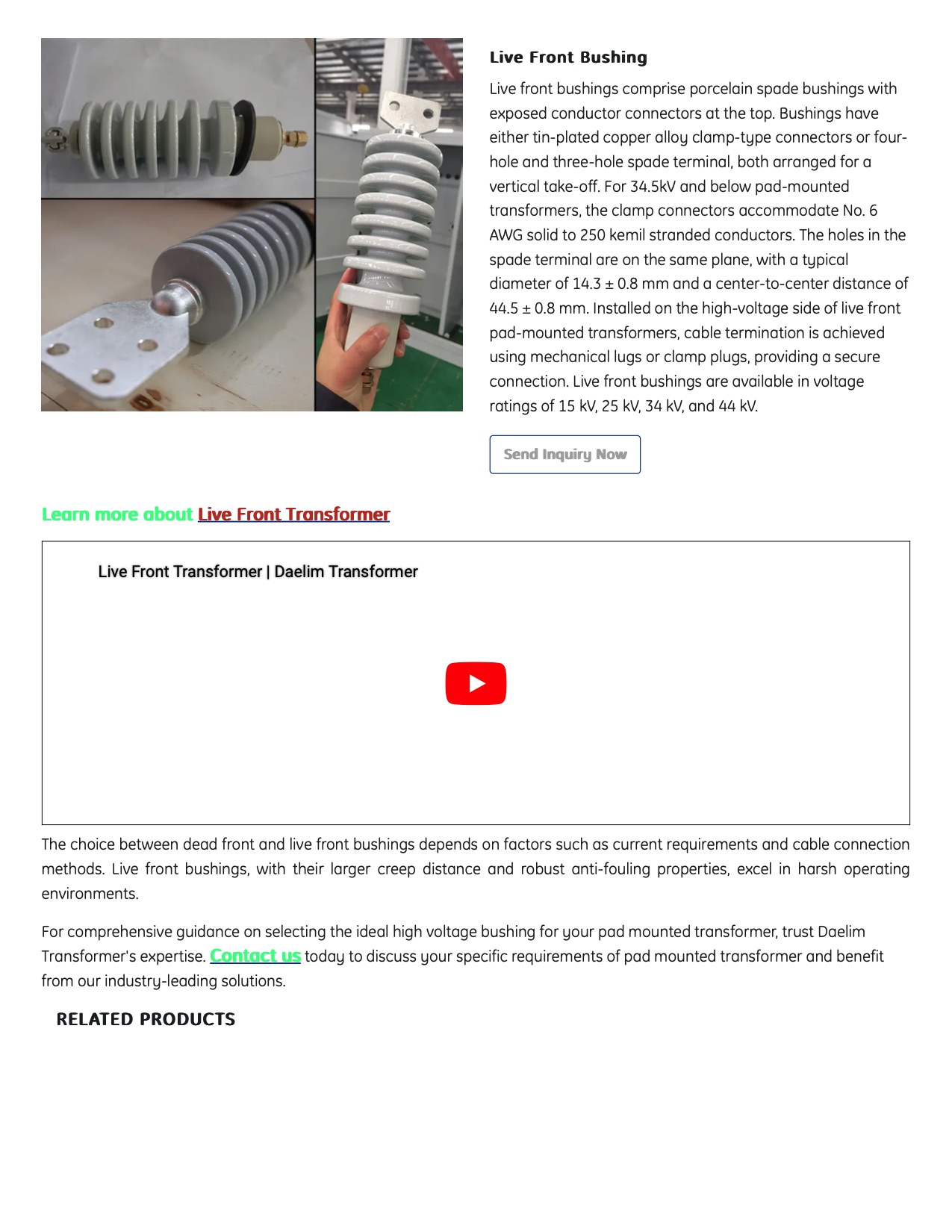

Live Front Bushing
Live front bushings comprise porcelain spade bushings with exposed conductor connectors at the top. Bushings have either tin-plated copper alloy clamp-type connectors or four- hole and three-hole spade terminal, both arranged for a vertical take-off. For 34.5kV and below pad-mounted transformers, the clamp connectors accommodate No. 6 AWG solid to 250 kemil stranded conductors. The holes in the spade terminal are on the same plane, with a typical diameter of 14.3 ± 0.8 mm and a center-to-center distance of 44.5 ± 0.8 mm. Installed on the high-voltage side of live front pad-mounted transformers, cable termination is achieved using mechanical lugs or clamp plugs, providing a secure connection. Live front bushings are available in voltage ratings of 15 kV, 25 kV, 34 kV, and 44 kV.
Send Inquiry Now
Live Front Transformer | Daelim Transformer
The choice between dead front and live front bushings depends on factors such as current requirements and cable connection methods. Live front bushings, with their larger creep distance and robust anti-fouling properties, excel in harsh operating environments.
For comprehensive guidance on selecting the ideal high voltage bushing for your pad mounted transformer, trust Daelim Transformer's expertise. Contact us today to discuss your specific requirements of pad mounted transformer and benefit from our industry-leading solutions.
