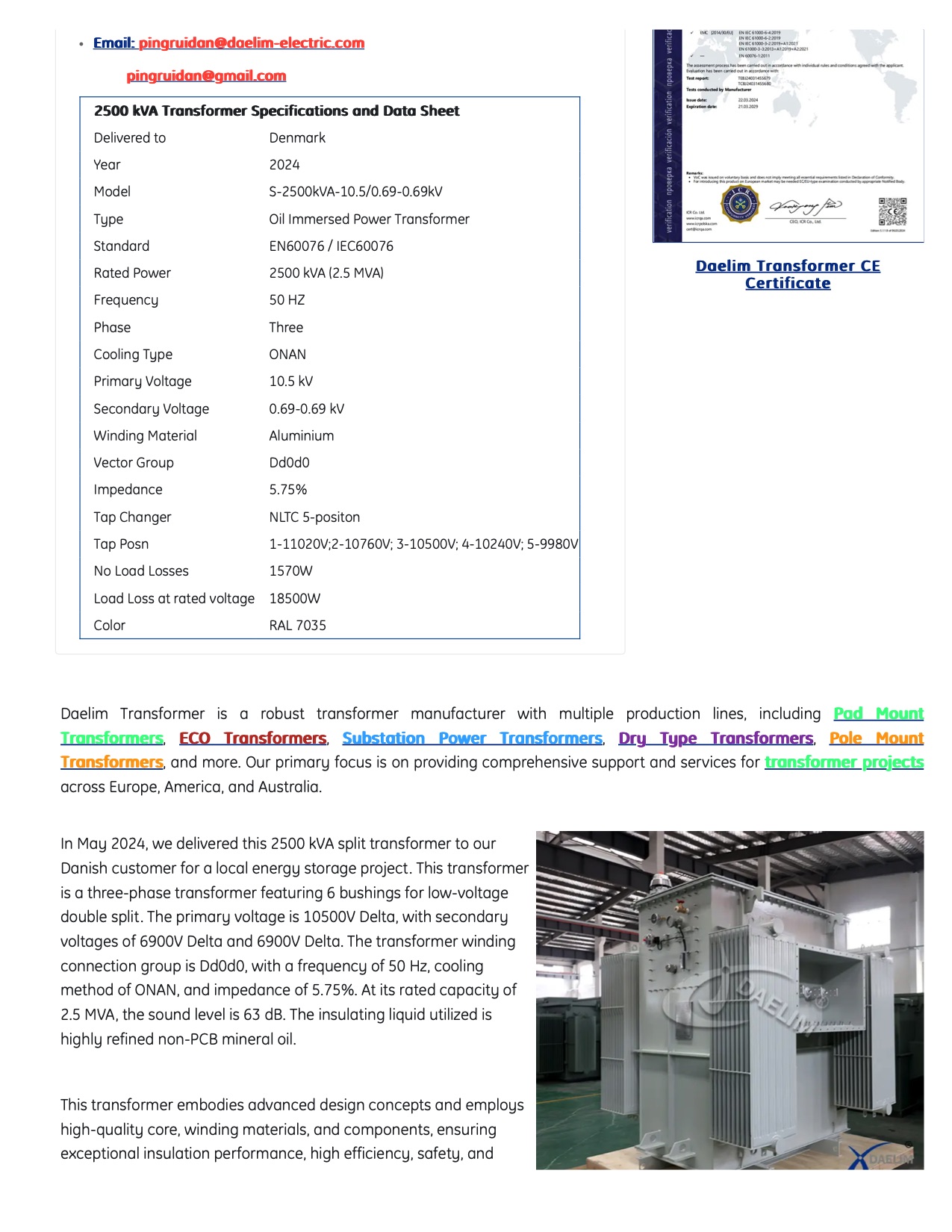

2500 kVA Transformer Specifications and Data Sheet
Delivered to
Year
Model
Type
Standard
Rated Power Frequency
Phase
Cooling Type Primary Voltage Secondary Voltage Winding Material Vector Group Impedance
Tap Changer
Tap Posn
No Load Losses
Load Loss at rated voltage Color
Denmark
2024
S-2500kVA-10.5/0.69-0.69kV
Oil Immersed Power Transformer
EN60076 / IEC60076
2500 kVA (2.5 MVA)
50 HZ
Three
ONAN
10.5 kV
0.69-0.69 kV
Aluminium
Dd0d0
5.75%
NLTC 5-positon
1-11020V;2-10760V; 3-10500V; 4-10240V; 5-9980V 1570W
18500W
RAL 7035
Daelim Transformer CE Certificate
Daelim Transformer is a robust transformer manufacturer with multiple production lines, including Pad Mount Transformers, ECO Transformers, Substation Power Transformers, Dry Type Transformers, Pole Mount Transformers, and more. Our primary focus is on providing comprehensive support and services for transformer projects across Europe, America, and Australia.
In May 2024, we delivered this 2500 kVA split transformer to our Danish customer for a local energy storage project. This transformer is a three-phase transformer featuring 6 bushings for low-voltage double split. The primary voltage is 10500V Delta, with secondary voltages of 6900V Delta and 6900V Delta. The transformer winding connection group is Dd0d0, with a frequency of 50 Hz, cooling method of ONAN, and impedance of 5.75%. At its rated capacity of 2.5 MVA, the sound level is 63 dB. The insulating liquid utilized is highly refined non-PCB mineral oil.
This transformer embodies advanced design concepts and employs high-quality core, winding materials, and components, ensuring exceptional insulation performance, high efficiency, safety, and
reliability. It has successfully met the stringent test requirements for
|
