PDF Publication Title:
Text from PDF Page: 010

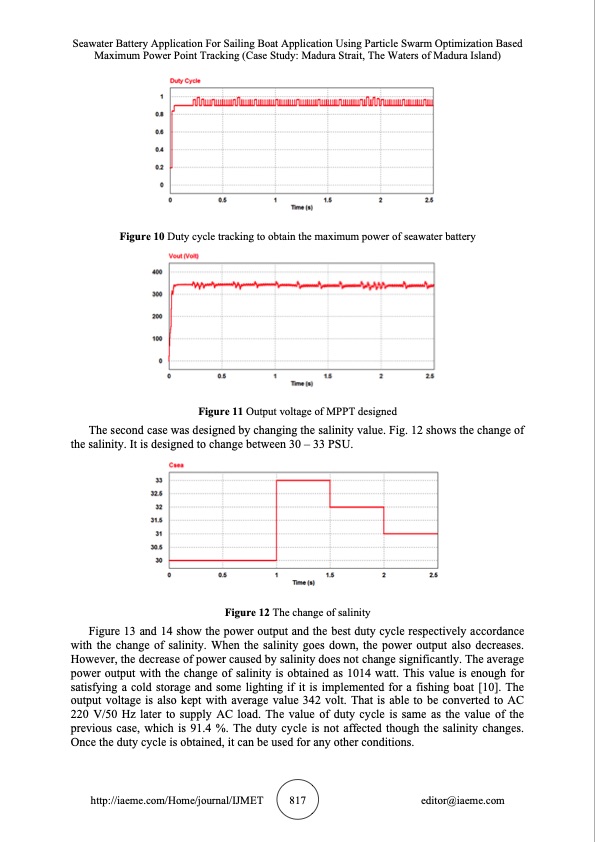

Seawater Battery Application For Sailing Boat Application Using Particle Swarm Optimization Based Maximum Power Point Tracking (Case Study: Madura Strait, The Waters of Madura Island) Figure 10 Duty cycle tracking to obtain the maximum power of seawater battery Figure 11 Output voltage of MPPT designed The second case was designed by changing the salinity value. Fig. 12 shows the change of the salinity. It is designed to change between 30 – 33 PSU. Figure 12 The change of salinity Figure 13 and 14 show the power output and the best duty cycle respectively accordance with the change of salinity. When the salinity goes down, the power output also decreases. However, the decrease of power caused by salinity does not change significantly. The average power output with the change of salinity is obtained as 1014 watt. This value is enough for satisfying a cold storage and some lighting if it is implemented for a fishing boat [10]. The output voltage is also kept with average value 342 volt. That is able to be converted to AC 220 V/50 Hz later to supply AC load. The value of duty cycle is same as the value of the previous case, which is 91.4 %. The duty cycle is not affected though the salinity changes. Once the duty cycle is obtained, it can be used for any other conditions. http://iaeme.com/Home/journal/IJMET 817 editor@iaeme.comPDF Image | SEAWATER BATTERY APPLICATION FOR SAILING BOAT
PDF Search Title:
SEAWATER BATTERY APPLICATION FOR SAILING BOATOriginal File Name Searched:
IJMET_10_01_083.pdfDIY PDF Search: Google It | Yahoo | Bing
