Text from PDF Page: 053

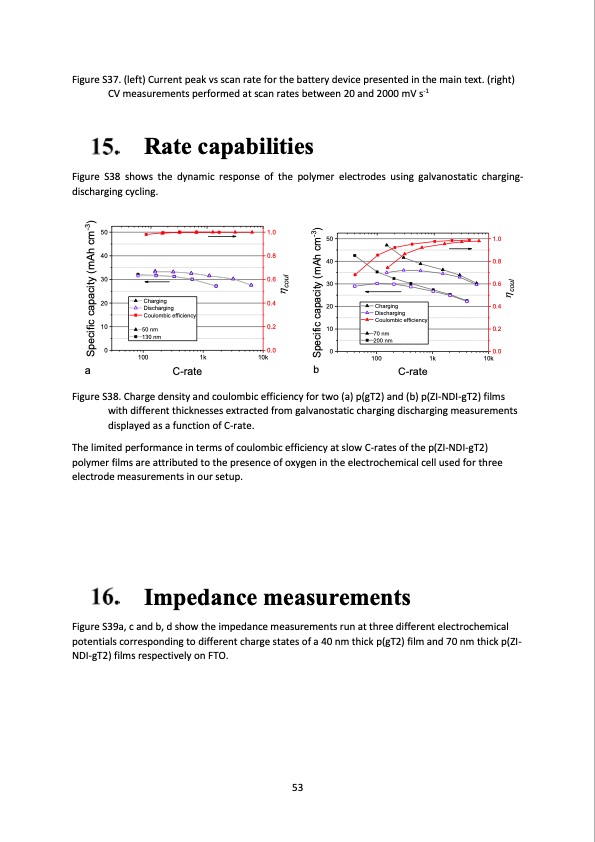

Figure S37. (left) Current peak vs scan rate for the battery device presented in the main text. (right) CV measurements performed at scan rates between 20 and 2000 mV s-1 Rate capabilities Figure S38 shows the dynamic response of the polymer electrodes using galvanostatic charging- discharging cycling. 50 40 30 20 10 0 1.0 0.8 0.6 0.4 0.2 0.0 10k 50 40 30 20 10 0 1.0 0.8 0.6 0.4 0.2 0.0 1k 10k Charging Discharging Coulombic efficiency 50 nm 130 nm Charging Discharging Coulombic efficiency 70 nm 200 nm a b C-rate 100 1k C-rate 100 Figure S38. Charge density and coulombic efficiency for two (a) p(gT2) and (b) p(ZI-NDI-gT2) films with different thicknesses extracted from galvanostatic charging discharging measurements displayed as a function of C-rate. The limited performance in terms of coulombic efficiency at slow C-rates of the p(ZI-NDI-gT2) polymer films are attributed to the presence of oxygen in the electrochemical cell used for three electrode measurements in our setup. Impedance measurements Figure S39a, c and b, d show the impedance measurements run at three different electrochemical potentials corresponding to different charge states of a 40 nm thick p(gT2) film and 70 nm thick p(ZI- NDI-gT2) films respectively on FTO. 53 Specific capacity (mAh cm-3) coul Specific capacity (mAh cm-3) coulPDF Image | salt water battery with high stability
