PDF Publication Title:
Text from PDF Page: 027

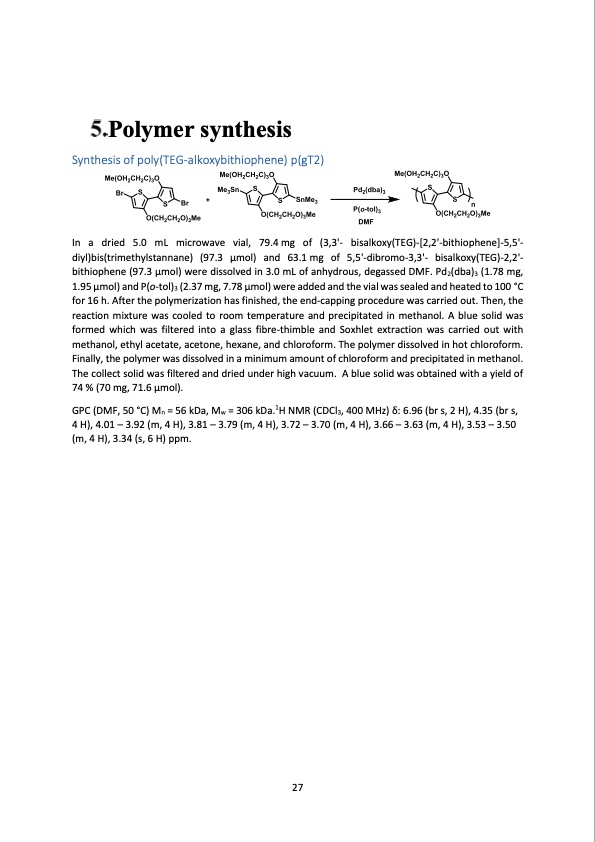

Polymer synthesis Synthesis of poly(TEG-alkoxybithiophene) p(gT2) In a dried 5.0 mL microwave vial, 79.4mg of (3,3'- bisalkoxy(TEG)-[2,2'-bithiophene]-5,5'- diyl)bis(trimethylstannane) (97.3 μmol) and 63.1mg of 5,5'-dibromo-3,3'- bisalkoxy(TEG)-2,2'- bithiophene (97.3 μmol) were dissolved in 3.0 mL of anhydrous, degassed DMF. Pd2(dba)3 (1.78 mg, 1.95 μmol) and P(o-tol)3 (2.37 mg, 7.78 μmol) were added and the vial was sealed and heated to 100 °C for 16 h. After the polymerization has finished, the end-capping procedure was carried out. Then, the reaction mixture was cooled to room temperature and precipitated in methanol. A blue solid was formed which was filtered into a glass fibre-thimble and Soxhlet extraction was carried out with methanol, ethyl acetate, acetone, hexane, and chloroform. The polymer dissolved in hot chloroform. Finally, the polymer was dissolved in a minimum amount of chloroform and precipitated in methanol. The collect solid was filtered and dried under high vacuum. A blue solid was obtained with a yield of 74 % (70 mg, 71.6 μmol). GPC (DMF, 50 °C) Mn = 56 kDa, Mw = 306 kDa.1H NMR (CDCl3, 400 MHz) δ: 6.96 (br s, 2 H), 4.35 (br s, 4 H), 4.01 – 3.92 (m, 4 H), 3.81 – 3.79 (m, 4 H), 3.72 – 3.70 (m, 4 H), 3.66 – 3.63 (m, 4 H), 3.53 – 3.50 (m, 4 H), 3.34 (s, 6 H) ppm. 27PDF Image | salt water battery with high stability
