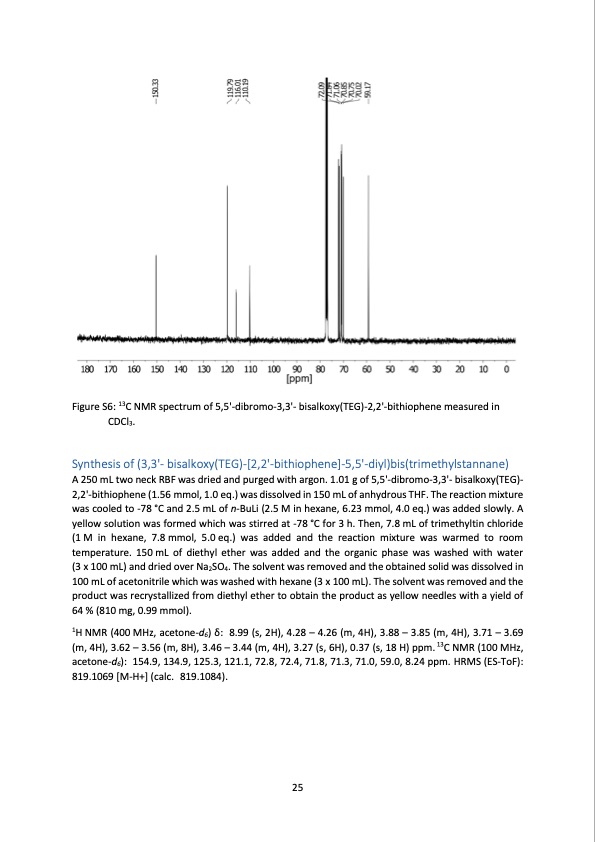

Figure S6: 13C NMR spectrum of 5,5'-dibromo-3,3'- bisalkoxy(TEG)-2,2'-bithiophene measured in CDCl3. Synthesis of (3,3'- bisalkoxy(TEG)-[2,2'-bithiophene]-5,5'-diyl)bis(trimethylstannane) A 250 mL two neck RBF was dried and purged with argon. 1.01 g of 5,5'-dibromo-3,3'- bisalkoxy(TEG)- 2,2'-bithiophene (1.56 mmol, 1.0 eq.) was dissolved in 150 mL of anhydrous THF. The reaction mixture was cooled to -78 °C and 2.5 mL of n-BuLi (2.5 M in hexane, 6.23 mmol, 4.0 eq.) was added slowly. A yellow solution was formed which was stirred at -78 °C for 3 h. Then, 7.8 mL of trimethyltin chloride (1 M in hexane, 7.8 mmol, 5.0 eq.) was added and the reaction mixture was warmed to room temperature. 150 mL of diethyl ether was added and the organic phase was washed with water (3 x 100 mL) and dried over Na2SO4. The solvent was removed and the obtained solid was dissolved in 100 mL of acetonitrile which was washed with hexane (3 x 100 mL). The solvent was removed and the product was recrystallized from diethyl ether to obtain the product as yellow needles with a yield of 64 % (810 mg, 0.99 mmol). 1H NMR (400 MHz, acetone-d6) δ: 8.99 (s, 2H), 4.28 – 4.26 (m, 4H), 3.88 – 3.85 (m, 4H), 3.71 – 3.69 (m, 4H), 3.62 – 3.56 (m, 8H), 3.46 – 3.44 (m, 4H), 3.27 (s, 6H), 0.37 (s, 18 H) ppm. 13C NMR (100 MHz, acetone-d6): 154.9, 134.9, 125.3, 121.1, 72.8, 72.4, 71.8, 71.3, 71.0, 59.0, 8.24 ppm. HRMS (ES-ToF): 819.1069 [M-H+] (calc. 819.1084). 25PDF Image | salt water battery with high stability
