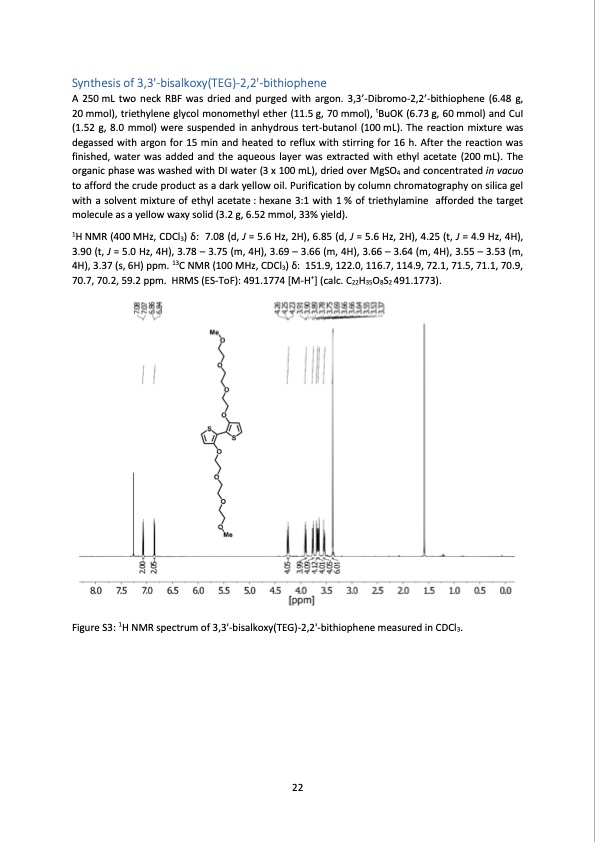

Synthesis of 3,3'-bisalkoxy(TEG)-2,2'-bithiophene A 250 mL two neck RBF was dried and purged with argon. 3,3’-Dibromo-2,2’-bithiophene (6.48 g, 20 mmol), triethylene glycol monomethyl ether (11.5 g, 70 mmol), tBuOK (6.73 g, 60 mmol) and CuI (1.52 g, 8.0 mmol) were suspended in anhydrous tert-butanol (100 mL). The reaction mixture was degassed with argon for 15 min and heated to reflux with stirring for 16 h. After the reaction was finished, water was added and the aqueous layer was extracted with ethyl acetate (200 mL). The organic phase was washed with DI water (3 x 100 mL), dried over MgSO4 and concentrated in vacuo to afford the crude product as a dark yellow oil. Purification by column chromatography on silica gel with a solvent mixture of ethyl acetate : hexane 3:1 with 1 % of triethylamine afforded the target molecule as a yellow waxy solid (3.2 g, 6.52 mmol, 33% yield). 1HNMR(400MHz,CDCl3)δ: 7.08(d,J=5.6Hz,2H),6.85(d,J=5.6Hz,2H),4.25(t,J=4.9Hz,4H), 3.90 (t, J = 5.0 Hz, 4H), 3.78 – 3.75 (m, 4H), 3.69 – 3.66 (m, 4H), 3.66 – 3.64 (m, 4H), 3.55 – 3.53 (m, 4H), 3.37 (s, 6H) ppm. 13C NMR (100 MHz, CDCl3) δ: 151.9, 122.0, 116.7, 114.9, 72.1, 71.5, 71.1, 70.9, 70.7, 70.2, 59.2 ppm. HRMS (ES-ToF): 491.1774 [M-H+] (calc. C22H35O8S2 491.1773). Figure S3: 1H NMR spectrum of 3,3'-bisalkoxy(TEG)-2,2'-bithiophene measured in CDCl3. 22PDF Image | salt water battery with high stability
