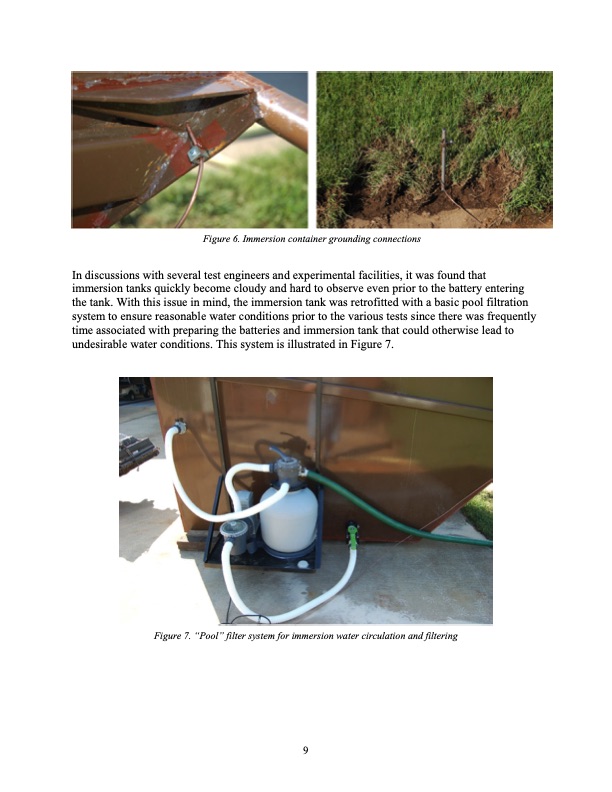

Figure 6. Immersion container grounding connections In discussions with several test engineers and experimental facilities, it was found that immersion tanks quickly become cloudy and hard to observe even prior to the battery entering the tank. With this issue in mind, the immersion tank was retrofitted with a basic pool filtration system to ensure reasonable water conditions prior to the various tests since there was frequently time associated with preparing the batteries and immersion tank that could otherwise lead to undesirable water conditions. This system is illustrated in Figure 7. Figure 7. “Pool” filter system for immersion water circulation and filtering 9PDF Image | Li-Ion Battery Pack Immersion Exploratory Investigation
