Text from PDF Page: 004

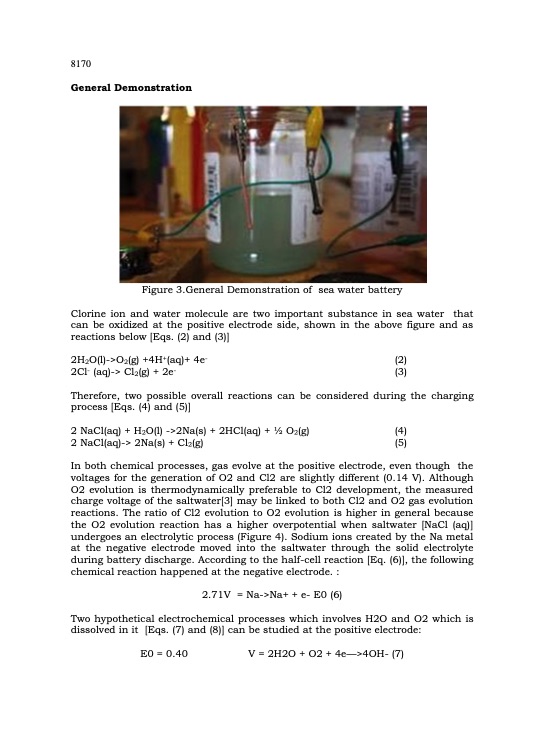

8170 General Demonstration Figure 3.General Demonstration of sea water battery Clorine ion and water molecule are two important substance in sea water that can be oxidized at the positive electrode side, shown in the above figure and as reactions below [Eqs. (2) and (3)] 2H2O(l)->O2(g) +4H+(aq)+ 4e- (2) 2Cl- (aq)-> Cl2(g) + 2e- (3) Therefore, two possible overall reactions can be considered during the charging process [Eqs. (4) and (5)] 2 NaCl(aq) + H2O(l) ->2Na(s) + 2HCl(aq) + 1⁄2 O2(g) (4) 2 NaCl(aq)-> 2Na(s) + Cl2(g) (5) In both chemical processes, gas evolve at the positive electrode, even though the voltages for the generation of O2 and Cl2 are slightly different (0.14 V). Although O2 evolution is thermodynamically preferable to Cl2 development, the measured charge voltage of the saltwater[3] may be linked to both Cl2 and O2 gas evolution reactions. The ratio of Cl2 evolution to O2 evolution is higher in general because the O2 evolution reaction has a higher overpotential when saltwater [NaCl (aq)] undergoes an electrolytic process (Figure 4). Sodium ions created by the Na metal at the negative electrode moved into the saltwater through the solid electrolyte during battery discharge. According to the half-cell reaction [Eq. (6)], the following chemical reaction happened at the negative electrode. : 2.71V = Na->Na+ + e- E0 (6) Two hypothetical electrochemical processes which involves H2O and O2 which is dissolved in it [Eqs. (7) and (8)] can be studied at the positive electrode: E0 = 0.40 V = 2H2O + O2 + 4e3>4OH- (7)PDF Image | Electric lantern using sea water
