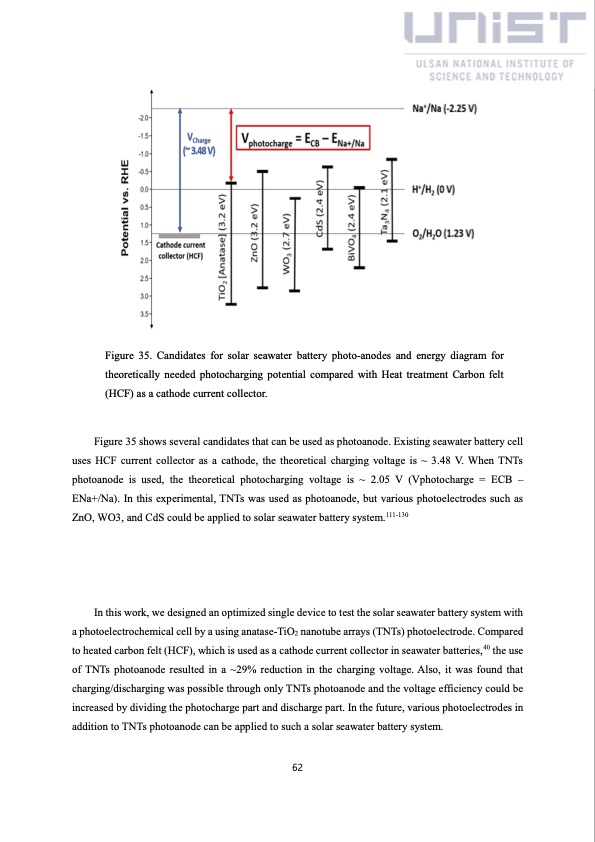

Figure 35. Candidates for solar seawater battery photo-anodes and energy diagram for theoretically needed photocharging potential compared with Heat treatment Carbon felt (HCF) as a cathode current collector. Figure 35 shows several candidates that can be used as photoanode. Existing seawater battery cell uses HCF current collector as a cathode, the theoretical charging voltage is ~ 3.48 V. When TNTs photoanode is used, the theoretical photocharging voltage is ~ 2.05 V (Vphotocharge = ECB – ENa+/Na). In this experimental, TNTs was used as photoanode, but various photoelectrodes such as ZnO, WO3, and CdS could be applied to solar seawater battery system.111-130 In this work, we designed an optimized single device to test the solar seawater battery system with a photoelectrochemical cell by a using anatase-TiO2 nanotube arrays (TNTs) photoelectrode. Compared to heated carbon felt (HCF), which is used as a cathode current collector in seawater batteries,40 the use of TNTs photoanode resulted in a ~29% reduction in the charging voltage. Also, it was found that charging/discharging was possible through only TNTs photoanode and the voltage efficiency could be increased by dividing the photocharge part and discharge part. In the future, various photoelectrodes in addition to TNTs photoanode can be applied to such a solar seawater battery system. 62PDF Image | China solar seawater battery
