PDF Publication Title:
Text from PDF Page: 055

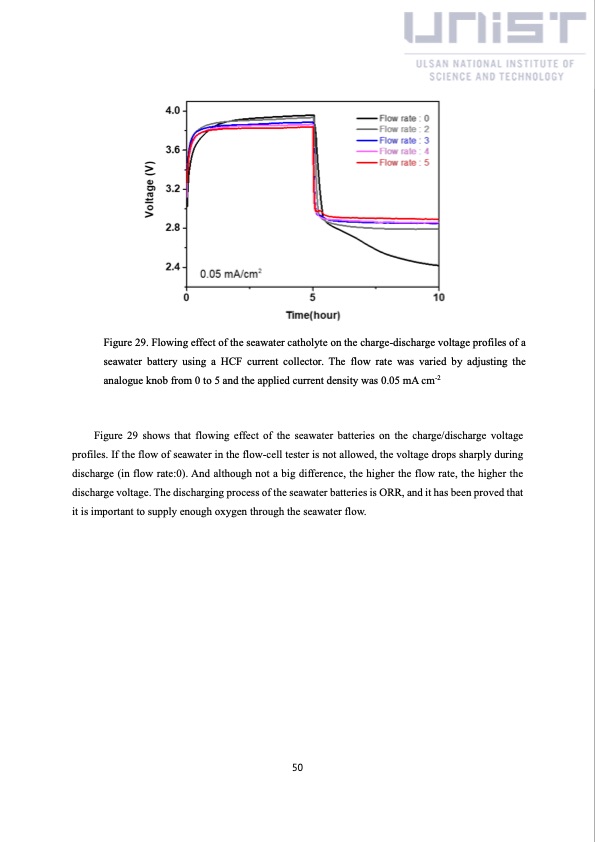

Figure 29. Flowing effect of the seawater catholyte on the charge-discharge voltage profiles of a seawater battery using a HCF current collector. The flow rate was varied by adjusting the analogue knob from 0 to 5 and the applied current density was 0.05 mA cm-2 Figure 29 shows that flowing effect of the seawater batteries on the charge/discharge voltage profiles. If the flow of seawater in the flow-cell tester is not allowed, the voltage drops sharply during discharge (in flow rate:0). And although not a big difference, the higher the flow rate, the higher the discharge voltage. The discharging process of the seawater batteries is ORR, and it has been proved that it is important to supply enough oxygen through the seawater flow. 50PDF Image | China solar seawater battery
PDF Search Title:
China solar seawater batteryOriginal File Name Searched:
solar-seawater.pdfDIY PDF Search: Google It | Yahoo | Bing
