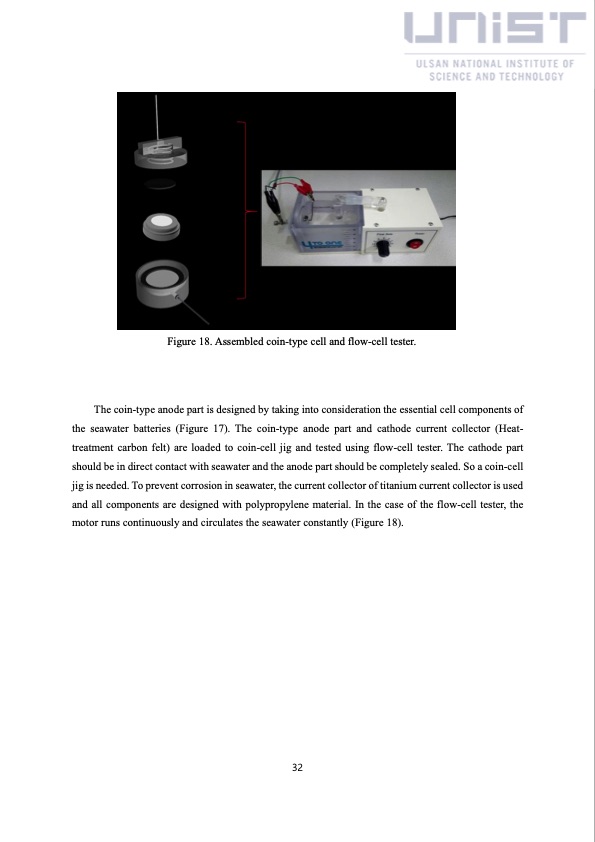

Figure 18. Assembled coin-type cell and flow-cell tester. The coin-type anode part is designed by taking into consideration the essential cell components of the seawater batteries (Figure 17). The coin-type anode part and cathode current collector (Heat- treatment carbon felt) are loaded to coin-cell jig and tested using flow-cell tester. The cathode part should be in direct contact with seawater and the anode part should be completely sealed. So a coin-cell jig is needed. To prevent corrosion in seawater, the current collector of titanium current collector is used and all components are designed with polypropylene material. In the case of the flow-cell tester, the motor runs continuously and circulates the seawater constantly (Figure 18). 32PDF Image | China solar seawater battery
