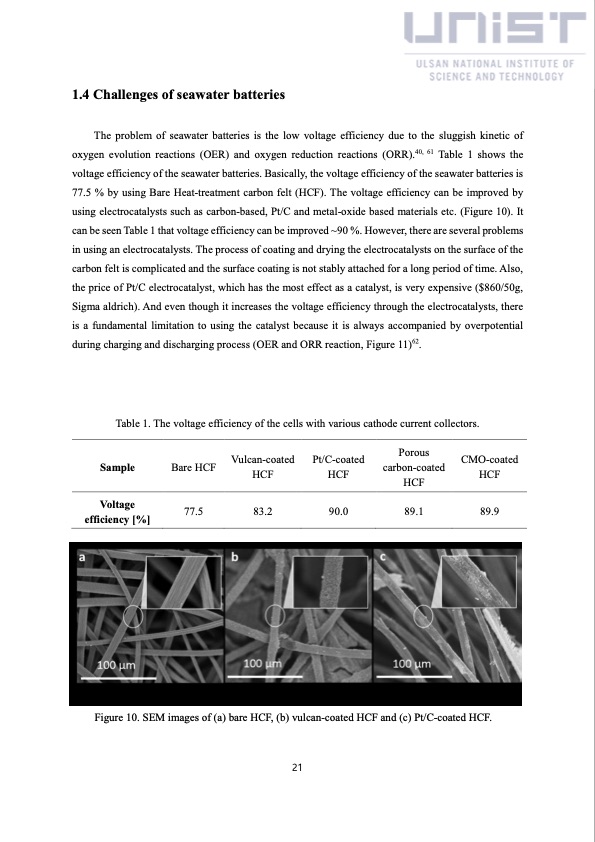

1.4 Challenges of seawater batteries The problem of seawater batteries is the low voltage efficiency due to the sluggish kinetic of oxygen evolution reactions (OER) and oxygen reduction reactions (ORR).40, 61 Table 1 shows the voltage efficiency of the seawater batteries. Basically, the voltage efficiency of the seawater batteries is 77.5 % by using Bare Heat-treatment carbon felt (HCF). The voltage efficiency can be improved by using electrocatalysts such as carbon-based, Pt/C and metal-oxide based materials etc. (Figure 10). It can be seen Table 1 that voltage efficiency can be improved ~90 %. However, there are several problems in using an electrocatalysts. The process of coating and drying the electrocatalysts on the surface of the carbon felt is complicated and the surface coating is not stably attached for a long period of time. Also, the price of Pt/C electrocatalyst, which has the most effect as a catalyst, is very expensive ($860/50g, Sigma aldrich). And even though it increases the voltage efficiency through the electrocatalysts, there is a fundamental limitation to using the catalyst because it is always accompanied by overpotential during charging and discharging process (OER and ORR reaction, Figure 11)62. Table 1. The voltage efficiency of the cells with various cathode current collectors. Sample Voltage efficiency [%] Bare HCF 77.5 CMO-coated Vulcan-coated Pt/C-coated HCF HCF 83.2 90.0 Porous carbon-coated HCF HCF 89.1 89.9 Figure 10. SEM images of (a) bare HCF, (b) vulcan-coated HCF and (c) Pt/C-coated HCF. 21PDF Image | China solar seawater battery
