Page | 044 This simple diagrammatic way of describing and analyzing the pathways of a risk from hazards to outcomes can be considered to be a combination of the logic of a fault tree analyzing the cause of an event and an event tree analyzing the consequences.

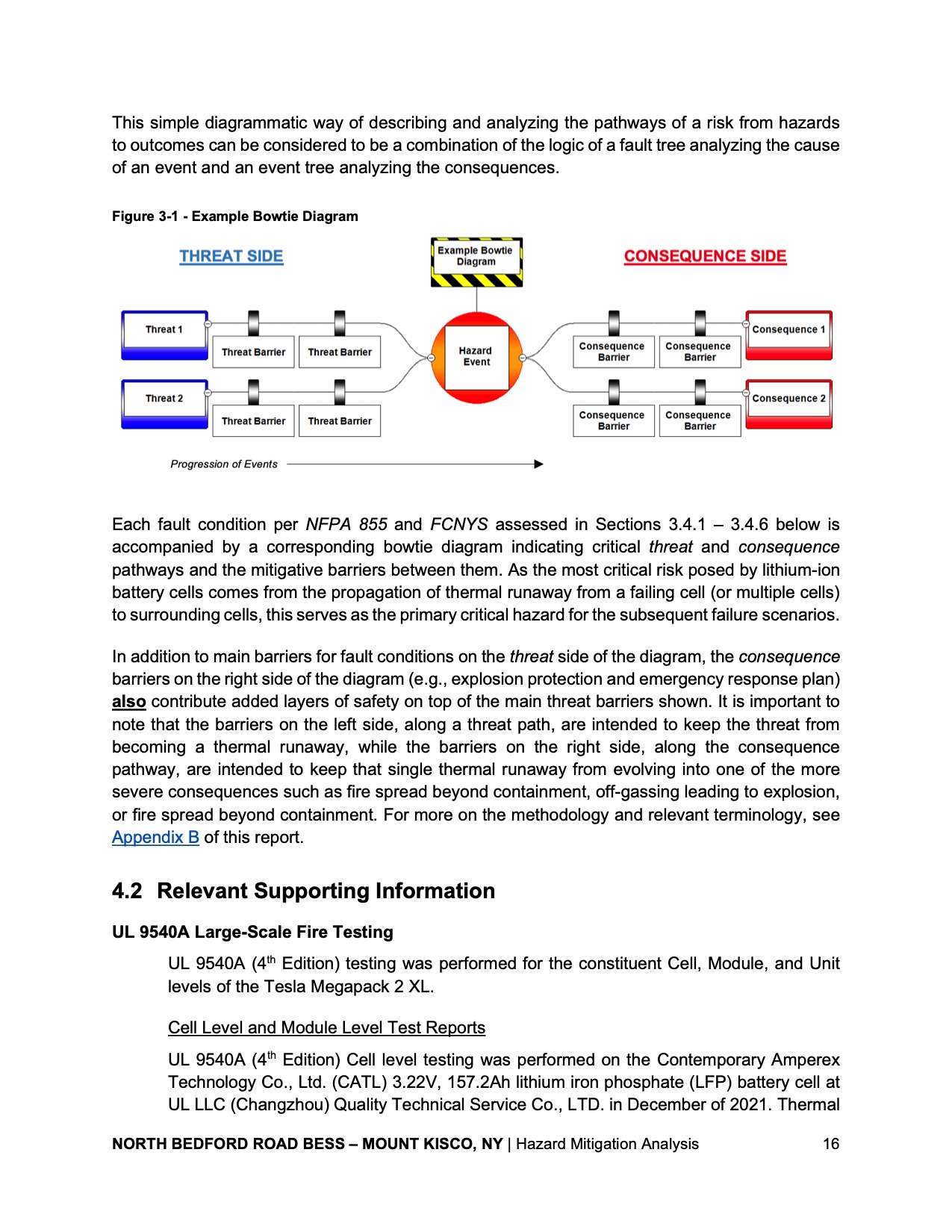

Figure 3-1 - Example Bowtie Diagram
Each fault condition per NFPA 855 and FCNYS assessed in Sections 3.4.1 – 3.4.6 below is accompanied by a corresponding bowtie diagram indicating critical threat and consequence pathways and the mitigative barriers between them. As the most critical risk posed by lithium-ion battery cells comes from the propagation of thermal runaway from a failing cell (or multiple cells) to surrounding cells, this serves as the primary critical hazard for the subsequent failure scenarios.
In addition to main barriers for fault conditions on the threat side of the diagram, the consequence barriers on the right side of the diagram (e.g., explosion protection and emergency response plan) also contribute added layers of safety on top of the main threat barriers shown. It is important to note that the barriers on the left side, along a threat path, are intended to keep the threat from becoming a thermal runaway, while the barriers on the right side, along the consequence pathway, are intended to keep that single thermal runaway from evolving into one of the more severe consequences such as fire spread beyond containment, off-gassing leading to explosion, or fire spread beyond containment. For more on the methodology and relevant terminology, see Appendix B of this report.
4.2 RelevantSupportingInformation UL 9540A Large-Scale Fire Testing
UL 9540A (4th Edition) testing was performed for the constituent Cell, Module, and Unit levels of the Tesla Megapack 2 XL.
Cell Level and Module Level Test Reports
UL 9540A (4th Edition) Cell level testing was performed on the Contemporary Amperex Technology Co., Ltd. (CATL) 3.22V, 157.2Ah lithium iron phosphate (LFP) battery cell at UL LLC (Changzhou) Quality Technical Service Co., LTD. in December of 2021. Thermal
